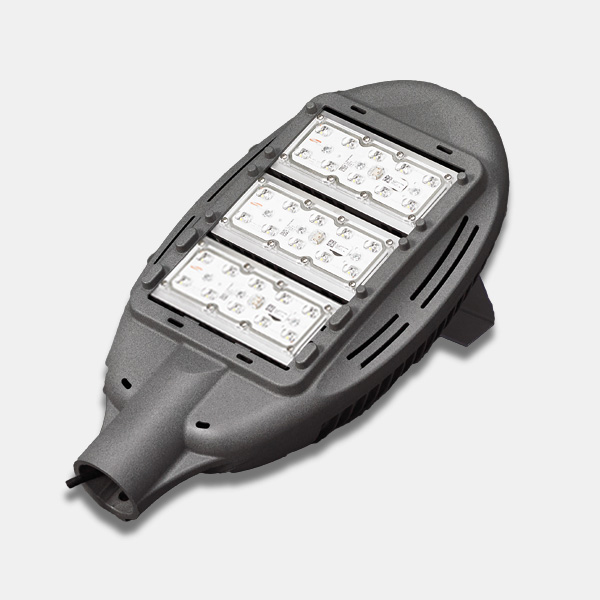

- Model Name : OS-SBM75
- Input power(W) : 75W
- Size(mm) : 416x221x123
- Luminous efficiency (lm/W) : 95
- Item identification number : 23288891
Product Features
Using zero-cross detection circuit technology, the stability of LED lighting was improved by preventing the damage of LED module by limiting the rush current to within 5A by starting the SMPS converter when it has the value near 0V by detecting the AC voltage supplied from the power supply.
Efficient dimming was made possible by adopting 1~10V dimming method, thereby enhancing the economic effect during the use of LED lighting.
Using an electroless condenser type converter, it has excellent temperature characteristics, guarantees a lifetime of 100,000 hours or more, and has 10kV surge resistance against external forces such as a lightning.

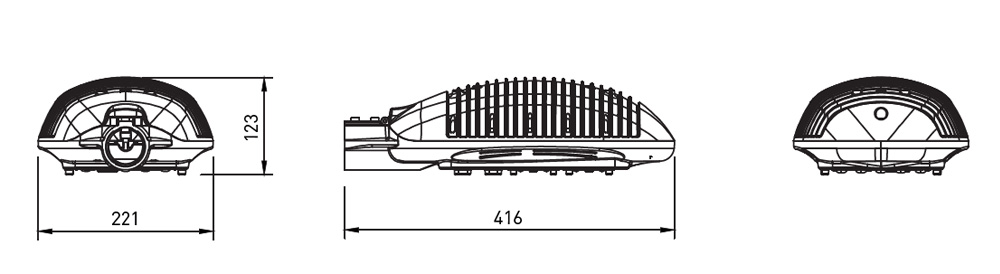

TOP VIEW
FRONT VIEW

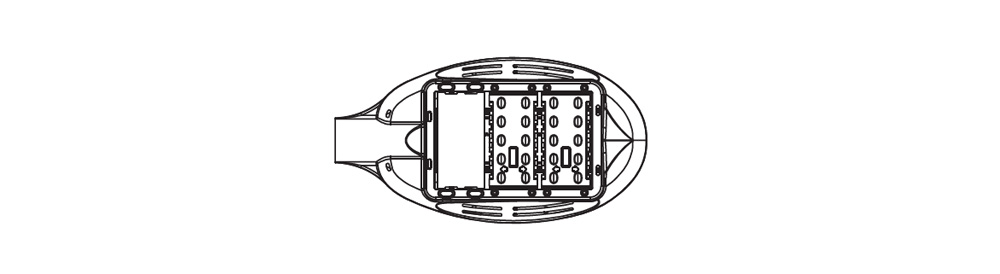

BOTTOM VIEW

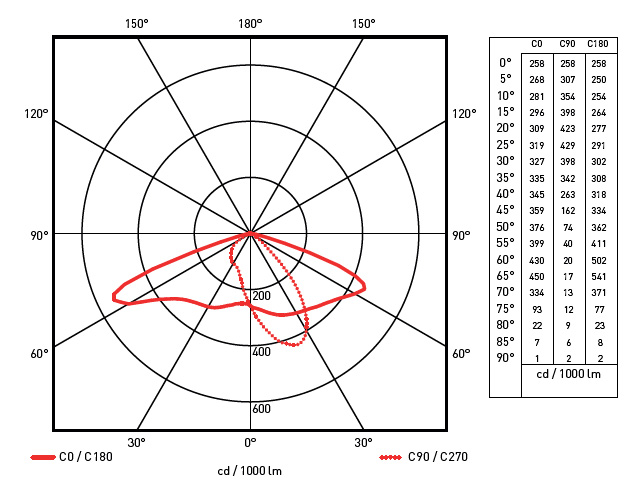

light distribution curve

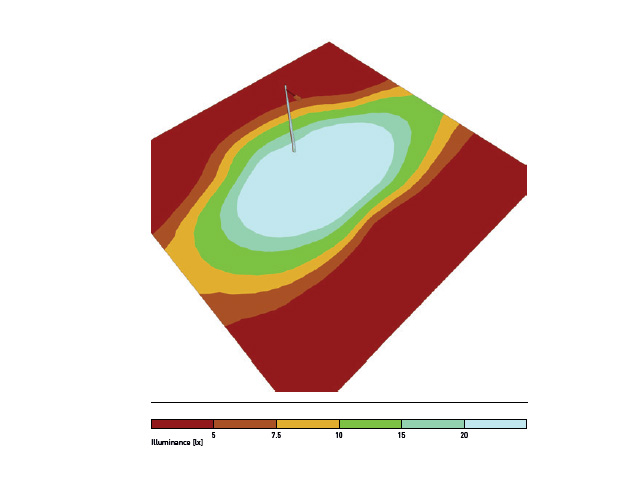

Illuminance [lx]
Lighting Photo
